Do you know what is in the concrete you are about to cut or drill into?

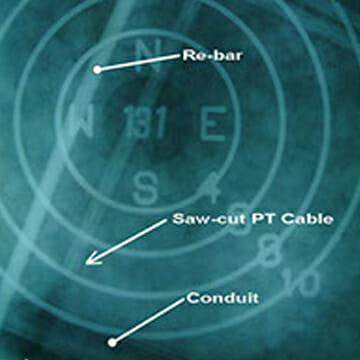

One Contractor thought he did and cut the PT cable.
Why X-Ray?
- Best Method for inspecting concrete
- Easy to identify inclusions
- Up to 16“ slab, depending on concrete density
- Film developed on-site
- Results are immediate
- Suspended Slabs, CMU, and Concrete Walls
X-Ray Process
- Upon arrival to site we do a complete walk through of your project.
- We identify the North location and number the shots(locations).
- We utilize a proprietary magnet and gauss meter to verify x-y location on the bottom of the slab for best film placement.
- Radiation barriers are set up to protect the general public.
- X-rays are taken of each location.
- Film is processed in our mobile darkroom.
- We layout the findings on the slab.
What You Need To Do
- Mark the location(s) you wish to core, drill or saw-cut.
- Provide access to both sides of concrete if suspended slab.
- Ensure gamma radiography is allowed for use on your project.
- Call one of our offices to schedule the job.

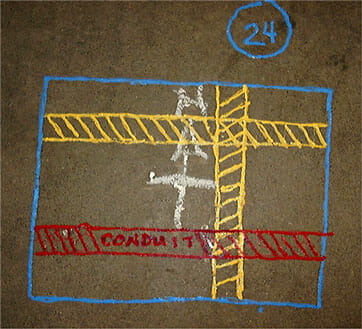

Layout Example

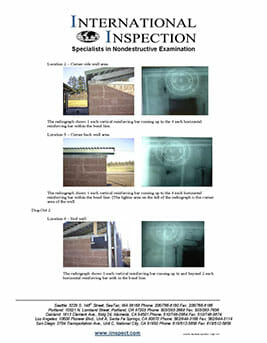

Should your project require a report, we can take digital photos of the project site and the radiograph and provide a brief narrative of the findings.
